Complete Code for the Sexy Sunset

@group(0) @binding(0) var  mySampler: sampler;
@group(0) @binding(1) var  myTexture: texture_2d<f32>;
@group(0) @binding(2) var <uniform> mytimer : f32;

/*

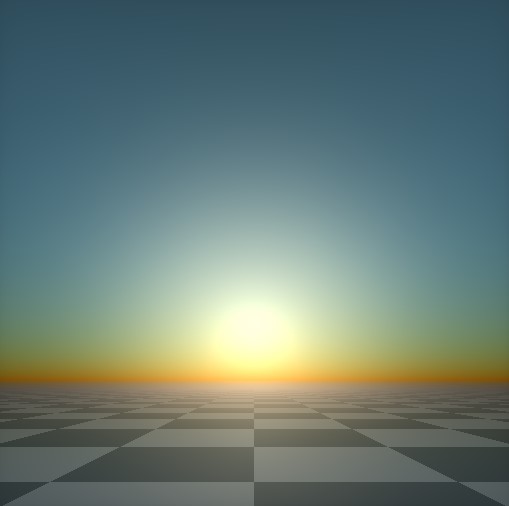

skyColor combines various optical and atmospheric effects to create a realistic sky shader.

1. Atmospheric Scattering - The reddish tones simulate the scattering of shorter wavelengths (blue/green) near the horizon. The bluish tones simulate Rayleigh scattering, which dominates at higher altitudes.
2. Fog - Below the horizon (yd), the fog effect gradually blends the scene with gray to simulate distance.
3 Sunlight -  A diffuse glow gives the sun a soft appearance. A specular highlight creates the bright central spot of the sun.
4. Exponential Decays - These simulate the attenuation of light due to atmospheric density.
*/
fn skyColor(rd: vec3<f32>) -> vec3<f32> {
    // Define the direction of the sun in the sky, slightly offset above the horizon.
    // Normalized to ensure it is a unit vector.
    let sundir = normalize(vec3<f32>(0.0, 0.1, 1.0));

    // `yd` represents the downward component of the ray's y-axis direction,
    // clamped to the range [negative infinity, 0.0].
    // This is used later to simulate fog and atmospheric effects.
    let yd = min(rd.y, 0.0);

    // `rd_y_clamped` is the upward component of the ray's y-axis direction,
    // clamped to the range [0.0, positive infinity].
    // This is used for atmospheric color calculations above the horizon.
    let rd_y_clamped = max(rd.y, 0.0);

    // Initialize the base color as black (no contribution yet).
    var col = vec3<f32>(0.0);

    // Add a reddish hue to the sky, primarily contributing to the lower atmosphere.
    // This simulates the red and green scatter near the horizon.
    col += vec3<f32>(
        0.4,                                // Red channel
        0.4 - exp(-rd_y_clamped * 20.0) * 0.15, // Green channel fades with altitude
        0.0                                 // No contribution to the blue channel
    ) * exp(-rd_y_clamped * 9.0);           // Exponential decay simulating atmospheric absorption.

    // Add a bluish hue to the sky, simulating Rayleigh scattering in the upper atmosphere.
    col += vec3<f32>(
        0.3, // Light contribution to red
        0.5, // Medium contribution to green
        0.6  // Strong contribution to blue
    ) * (1.0 - exp(-rd_y_clamped * 8.0))    // Smooth transition effect as rd_y increases.
      * exp(-rd_y_clamped * 0.9);           // Exponential decay for realism.

    // Simulate fog by mixing the sky color with a flat gray (vec3(0.3)).
    // The blending factor depends on the downward component of the ray (`yd`).
    col = mix(
        col * 1.2,                         // Enhance sky brightness slightly before mixing.
        vec3<f32>(0.3),                    // Fog color (gray).
        1.0 - exp(yd * 100.0)              // Fog intensity increases below the horizon.
    );

    // Add sunlight contributions:
    // 1. A warm, diffuse glow around the sun.
    col += vec3<f32>(1.0, 0.8, 0.55)       // Sun color (soft yellow-orange).
        * pow(max(dot(rd, sundir), 0.0), 15.0) // Sun's diffuse intensity (15th power for sharpness).
        * 0.6;                             // Scale down the intensity for balance.

    // 2. A sharp specular highlight for the sun itself, with very high power for sharpness.
    col += pow(max(dot(rd, sundir), 0.0), 150.0) // Specular highlight intensity (150th power for sharp focus).
        * 0.15;                            // Scale down the specular contribution.

    // Return the final computed color for the sky.
    return col;
}

fn mymod(x:f32, y:f32) -> f32
{
    return ( x - y * floor(x/y) );
}

fn checker(p: vec2<f32>) -> f32 {
    // Compute the floor of the input vector
    let floored_p = floor(p);

    // Apply modulus operation to wrap the values within 0-2
    let mod_p = vec2<f32>( mymod(floored_p.x,2.0), mymod(floored_p.y,2.0) );

    // Sum the components of the vector
    let sum = mod_p.x + mod_p.y;

    // Compute the final modulus
    let checker_value = mymod(sum, 2.0);

    // Return based on the result of the modulus
    if (checker_value < 1.0) {
        return 0.25;
    }
    return 0.1;
}

/*
    SHADER ENTRY POINT
*/
@fragment
fn main(@location(0) uvs: vec2<f32>) -> @location(0) vec4<f32> {
    // Define the screen resolution. This is a constant that determines the size of the render output.
    // It's used to adjust the aspect ratio and for various calculations in the shader.
    let resolution = vec2<f32>(512.0, 512.0);

    // UV coordinates. These are normalized to [0, 1] across the screen space.
    // Convert normalized UVs into a range of [-1, 1], effectively creating clip space coordinates.
    // This is a common step in rendering pipelines to account for camera space calculations.
    let v = vec2<f32>(-1.0) + 2.0 * uvs;

    // Compute the screen's aspect ratio, which is the ratio of width to height.
    // This is used to scale the x-axis so that the image doesn't appear stretched or squished.
    let aspect_ratio = resolution.x / resolution.y;

    // Construct the direction vector `dir` for a ray originating from the camera.
    // The x-component is scaled by the aspect ratio, the y-component is offset for a slight tilt,
    // and the z-component points forward into the scene.
    let dir = normalize(vec3<f32>(v.x * aspect_ratio, v.y + 0.5, 1.5));

    // Compute the color of the checkerboard pattern based on the ray direction.
    // The pattern is scaled by dividing the xz components of `dir` by `dir.y`.
    // A time-based offset (`-mytimer * 2.0`) adds animation to the checkerboard pattern.
    let checker_col = vec3<f32>(checker(dir.xz / dir.y * 0.5 + vec2<f32>(0.0, -mytimer * 2.0)));

    // Compute the reflection vector for the ray `dir` relative to a flat surface with a normal of (0, 1, 0).
    // This simulates light bouncing off the ground plane into the scene.
    let reflected_dir = reflect(dir, vec3<f32>(0.0, 1.0, 0.0));

    // Combine the checkerboard color and the sky color reflected in the ground.
    // The reflection is scaled down by 0.3 to reduce its intensity.
    var col = checker_col + skyColor(reflected_dir) * 0.3;

    // Add atmospheric blending by interpolating (`mix`) between the current color (`col`)
    // and the sky color along the ray direction (`dir`).
    // The blending factor is controlled by an exponential decay function, simulating atmospheric density.
    col = mix(col, skyColor(dir), exp(-max(-v.y * 9.0 - 4.8, 0.0)));

    // Apply a vignette effect to darken the corners of the image.
    // The effect is strongest where the UV coordinates are farthest from the center.
    // A smooth transition is achieved using a power function.
    let vignette = 0.7 + 0.3 * pow(uvs.x * uvs.y * (1.0 - uvs.x) * (1.0 - uvs.y) * 16.0, 0.1);
    col *= vignette;

    // Output the final color as a `vec4`, where the alpha value is set to 1.0 for full opacity.
    return vec4<f32>(col, 1.0);
}

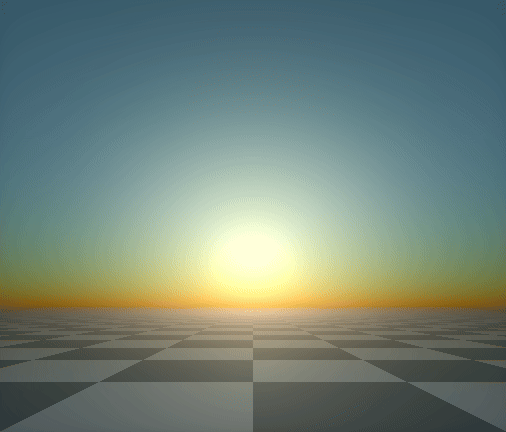

The sky is animated to give you a feeling of always moving towards the sunset (scrolling the checkered floor).
