Animated Character Instancing (MD2)


50 thousand animated characters all jumping and moving in real-time on the screen in a web-browser using instancing with the WebGPU API.

The .md2 format is a bit old now, but it does the job, it stores the vertices for each frame - and is interpolated (morphed) to create the animation effect.

The full md2 mesh loading code is included below - simple and sweet! Essentially, it's just a header section whilc include offsets to the mesh data (e.g., vertices, faces, texture coordinates etc).

Once the data is read in and the vertex/index buffers are setup for the WebGPU API! You're ready to go! Render a single instance! If you can render 1, you can render as many as you want.

To manage the instances - so they aren't all drawn on top of one another - you can use the
@builtin(instance_index)
variable in the WGSL shader - so that each instance is drawn at a differnet location and the frame number for the animation is offset (so they each animate/move differently).

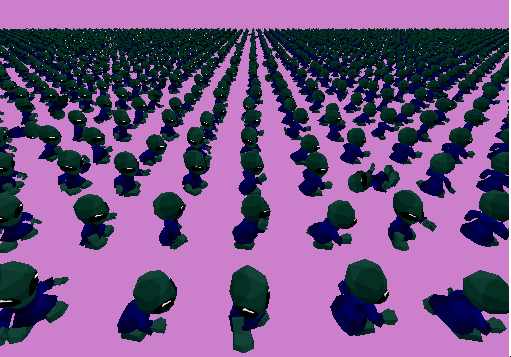

animated md2 characters instanced 50 thousand of them


Model Loader/Parser


The following code loads the 3d model data from the md2 file - while the md2 file is a bit old - it's also very compact and easy to implement. Essentially each animation frame stores all the vertices.

Then for each frame the previous and next vertex values (for the position) are interpolated. Typically, the md2 file contains 192ish animation frame - which form idling, walking, jumping and so on.

<script type='module'>
// Function to load a binary file
function loadBinaryFile(url) {
    return fetch(url)
        .then(response => response.arrayBuffer());
}

// Function to parse the MD2 file
function parseMD2(buffer) {
    const dataView = new DataView(buffer);

    const header = {
        ident: dataView.getUint32(0, true),
        version: dataView.getUint32(4, true),
        skinWidth: dataView.getUint32(8, true),
        skinHeight: dataView.getUint32(12, true),
        frameSize: dataView.getUint32(16, true),
        numSkins: dataView.getUint32(20, true),
        numVertices: dataView.getUint32(24, true),
        numTexCoords: dataView.getUint32(28, true),
        numTriangles: dataView.getUint32(32, true),
        numGlCommands: dataView.getUint32(36, true),
        numFrames: dataView.getUint32(40, true),
        offsetSkins: dataView.getUint32(44, true),
        offsetTexCoords: dataView.getUint32(48, true),
        offsetTriangles: dataView.getUint32(52, true),
        offsetFrames: dataView.getUint32(56, true),
        offsetGlCommands: dataView.getUint32(60, true),
        offsetEnd: dataView.getUint32(64, true)
    };

    // Ensure the file is a valid MD2 file
    if (header.ident !== 844121161 || header.version !== 8) {
        throw new Error("Not a valid MD2 file");
    }

      console.log('header.offsetTriangles:', header.offsetTriangles );

     let faces = [];
    let offset = header.offsetTriangles;
    for (let i = 0; i < header.numTriangles; i++)
    {
        let i0 = dataView.getUint16(offset, true);
        let i1 = dataView.getUint16(offset+2, true);
        let i2 = dataView.getUint16(offset+4, true);
          faces.push( i0, i1, i2 );
        offset += 12;
    }
    faces = faces.flat(3);

    // Extract frame data
    const frames = [];
    offset = header.offsetFrames;

    for (let i = 0; i < header.numFrames; i++) {
        const frame = {
            scale: [
                dataView.getFloat32(offset, true),
                dataView.getFloat32(offset + 4, true),
                dataView.getFloat32(offset + 8, true)
            ],
            translate: [
                dataView.getFloat32(offset + 12, true),
                dataView.getFloat32(offset + 16, true),
                dataView.getFloat32(offset + 20, true)
            ],
            name: '',
            vertices: []
        };

        offset += 24;

        const nameBytes = new Uint8Array(buffer, offset, 16);
        frame.name = String.fromCharCode(...nameBytes).replace(/\0/g, '');

        offset += 16;

        for (let j = 0; j < header.numVertices; j++) {
            let x = dataView.getUint8(offset) * frame.scale[0] + frame.translate[0];
            let y = dataView.getUint8(offset + 1) * frame.scale[1] + frame.translate[1];
            let z = dataView.getUint8(offset + 2) * frame.scale[2] + frame.translate[2];

            const vertex = {
                pos: [
                    x, z, -y // swizzle xyz => xz(-y)
                ],
                normalIndex: dataView.getUint8(offset + 3)
            };
            frame.vertices.push(vertex);
            offset += 4;
        }

        frames.push(frame);
    }


    return {
        header,
        frames,
        faces
    };
}


// Example usage
// xbdev.net
let buffer2 = await loadBinaryFile('https://webgpulab.xbdev.net/var/resources/pac3D.md2');
const model = parseMD2(buffer2);


console.log('header:', model.header );
console.log('number frames:', model.frames.length );
console.log('number frames:', Object.keys(model.frames[0]) );
console.log('number frames[0] name:', model.frames[0].name );
console.log('number frames[0] pos:', model.frames[0].vertices[0].pos );
console.log('number frames[0] normalIndex:', model.frames[0].vertices[0].normalIndex );


Example output for the console log:

log:["header.offsetTriangles:",1564]
log:["header:",{"ident":844121161,"version":8,"skinWidth":256,"skinHeight":256,
                "frameSize":936,"numSkins":0,"numVertices":224,"numTexCoords":374,
                "numTriangles":416,"numGlCommands":2089,"numFrames":198,"offsetSkins":68,
                "offsetTexCoords":68,"offsetTriangles":1564,"offsetFrames":6556,
                "offsetGlCommands":191884,"offsetEnd":200240}]
log:["number frames:",198]
log:["number frames:",["scale","translate","name","vertices"]]
log:["number frames[0] name:","stand01"]
log:["number frames[0] pos:",[-2.645264983177185,17.05917051434517,10.30500990152359]]
log:["number frames[0] normalIndex:",121]


Instancing



The following is the full vertex fragment shader for the implementation. The vertex animation frames are stored in the memory variable
frames
.

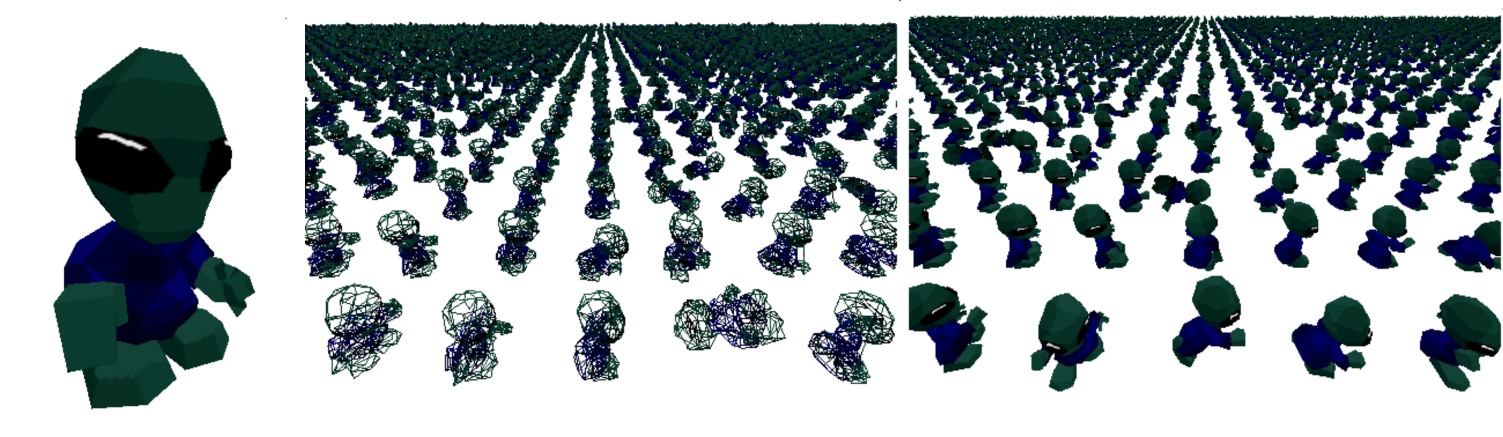

Outpu render (md2 models) - single instance, wireframe and solid 50,000 instance.
Outpu render (md2 models) - single instance, wireframe and solid 50,000 instance.



struct Uniforms {
  modelViewProjectionMatrix : mat4x4<f32>,
};
@binding(0) @group(0) var<uniform> uniforms : Uniforms;
@binding(1) @group(0) var<storage,read> frames  : array< f32 >;
@binding(2) @group(0) var<uniform> mytimer : f32;
@binding(5) @group(0) var<storage,read> coords    : array< f32 >;
@binding(6) @group(0) var<storage,read> texfaces  : array< u32 >;

struct VSOut {
    @builtin(position) Position: vec4<f32>,
    @location(0)       pos     : vec3<f32>,
    @location(1)       uvs     : vec2<f32>,
};

fn random(uv: vec2<f32>) -> f32 {
  return fract(sin(dot(uv, vec2<f32>(12.9898, 78.233))) * 43758.5453);
}

@vertex
fn main(@builtin(instance_index) instanceIndex: u32,
        @builtin(vertex_index) vertexIndex : u32,
        @location(0) inPos  : vec3<f32>,
        @location(1) normal : vec3<f32>) -> VSOut
{

      var off = vec3<f32>(0.0);
      var numInst:f32 = ${numInstances};
    var numInstSqrt:u32 = ${Math.round(Math.sqrt(numInstances))};

    let ix = f32( instanceIndex / numInstSqrt ) / f32(numInstSqrt);
    let iz = f32( instanceIndex % numInstSqrt ) / f32(numInstSqrt);
      let delta = ${sepdist} * numInst;

      off.x = -delta + 2.0 * delta * ix;
    off.z = -delta + 2.0 * delta * iz;


    let n = numInst * random( vec2<f32>( f32(instanceIndex) * 0.129303219,
                                         f32(instanceIndex) * 0.29238321 ) );

      let speed = 0.2;
    let numVertices:u32 = ${(frameverts.length/numFrames)};
    let numFrames:u32 = ${numFrames};
    let startFrameIndex0:u32 = numVertices * ( u32( n + mytimer*speed ) % numFrames );
    let startFrameIndex1:u32 = numVertices * ( u32( n + mytimer*speed + 1.0 ) % numFrames );

    let framePos0 = vec3<f32>( frames[ startFrameIndex0 + vertexIndex*5 + 0 ],
                               frames[ startFrameIndex0 + vertexIndex*5 + 1 ],
                               frames[ startFrameIndex0 + vertexIndex*5 + 2 ] );

      let framePos1 = vec3<f32>( frames[ startFrameIndex1 + vertexIndex*5 + 0 ],
                               frames[ startFrameIndex1 + vertexIndex*5 + 1 ],
                               frames[ startFrameIndex1 + vertexIndex*5 + 2 ] );

    let framePos = mix( framePos0, framePos1, fract( n + mytimer*speed ) );


      let uvs: vec2<f32> = vec2<f32>( frames[ startFrameIndex0 + vertexIndex*5 + 3 ],
                                    frames[ startFrameIndex0 + vertexIndex*5 + 4 ] );

    var vsOut: VSOut;
    //vsOut.Position = uniforms.modelViewProjectionMatrix * vec4<f32>(inPos , 1.0);
    vsOut.Position = uniforms.modelViewProjectionMatrix * vec4<f32>(framePos + off , 1.0);
    vsOut.pos      = inPos ;
    vsOut.uvs      = uvs ;
    return vsOut;
}



Things to Try


• Try loading in other md2 models (see the resources links)
• Plot number instances vs render time on a chart (see how it changes) - it should be pretty 'flat' - until a threshold is reached and the frame rate suddenly just drops (won't crash - just goes slow)
• Display multiple different animated characters (not all the same ones)
• Add a compute shader pass - each character has a simple logic and walks around and avoids bumping into other characters
• Explore implementing a swarm/flocking - see Flocking demo LINK
• Do 'post-processing' screen-space rendering (add ambient occlusion lighting/effects - without the performance hit - even with hundreds of thousands of characters - see SSAO demo LINK
• Add terrain - use a height map algorithm on the GPU to calculate the height - so it doesn't cost anything to do collisions with the terrain for the characters - see height map demo LINK
• Explore other animation formats - with rigid skeletons/skinning - demo show how skinning works LINK


Resources & Links


• Demo 50,000 Instanced Characters (WebGPU Lab) [LINK]

• MD2 Format and Information [LINK]

• Example MD2 Models [LINK]
