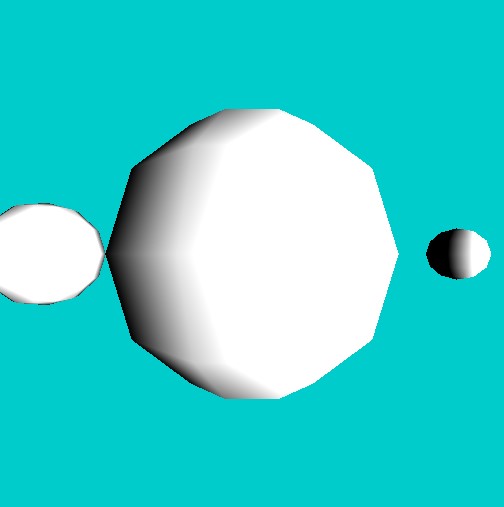

Per Vertex Lighting

sphere = function()
{
// ------------------------------------------------

function geo()
{
      let widthSegments  = 10,
        heightSegments = 6,
        radius = 1.0,
        phiStart = 0, phiLength = Math.PI * 2,
        thetaStart = 0, thetaLength = Math.PI;

    widthSegments = Math.max( 3, Math.floor( widthSegments ) );
    heightSegments = Math.max( 2, Math.floor( heightSegments ) );

    const thetaEnd = Math.min( thetaStart + thetaLength, Math.PI );

    let index = 0;
    const grid = [];

    const vertex = {x:0, y:0, z:0};
    const normal = {x:0, y:0, z:0};

    // buffers
    const mesh = { v:[], n:[], t:[], i:[] }

    // generate vertices, normals and uvs
    for ( let iy = 0; iy <= heightSegments; iy ++ ) {

      const verticesRow = [];
      const v = iy / heightSegments;
      // special case for the poles

      let uOffset = 0;
      if ( iy === 0 && thetaStart === 0 ) {
        uOffset = 0.5 / widthSegments;
      } else if ( iy === heightSegments && thetaEnd === Math.PI ) {
        uOffset = - 0.5 / widthSegments;
      }

      for ( let ix = 0; ix <= widthSegments; ix ++ ) {
        const u = ix / widthSegments;
        // vertex
        vertex.x = - radius * Math.cos( phiStart + u * phiLength ) * Math.sin( thetaStart + v * thetaLength );
        vertex.y = radius * Math.cos( thetaStart + v * thetaLength );
        vertex.z = radius * Math.sin( phiStart + u * phiLength ) * Math.sin( thetaStart + v * thetaLength );
        mesh.v.push( [vertex.x, vertex.y, vertex.z] );

        // normal
        let vl = vertex.x*vertex.x + vertex.y*vertex.y + vertex.z*vertex.z;
        normal.x = vertex.x/vl;
        normal.y = vertex.y/vl;
        normal.z = vertex.z/vl;
        mesh.n.push( [normal.x, normal.y, normal.z] );

        // uv
        mesh.t.push( [u + uOffset, v] );
        verticesRow.push( index++ );
      }
      grid.push( verticesRow );
    }

      // indices
    for ( let iy = 0; iy < heightSegments; iy ++ ) {

      for ( let ix = 0; ix < widthSegments; ix ++ ) {

        const a = grid[ iy ][ ix + 1 ];
        const b = grid[ iy ][ ix ];
        const c = grid[ iy + 1 ][ ix ];
        const d = grid[ iy + 1 ][ ix + 1 ];

        if ( iy !== 0 || thetaStart > 0 ) mesh.i.push( a, b, d );
        if ( iy !== heightSegments - 1 || thetaEnd < Math.PI ) mesh.i.push( b, c, d );
      }
    }
    return mesh;
}

// -------------------------------

this.create = async function(device, presentationFormat, presentationSize, textureName="https://webgpulab.xbdev.net/var/images/earth.jpg")
{

let mesh = geo();

console.log('num Vertices:', mesh.v.length);
console.log('num Coords:' ,  mesh.t.length);
console.log('num Normals:',  mesh.n.length);
console.log('num Indices:',  mesh.i.length);

// -------------------------------------------------

// Lets biuld the buffers to hold the data

if ( mesh.n.length==0 ) mesh.n.length = mesh.v.length * 3;
if ( mesh.t.length==0 ) mesh.t.length = mesh.v.length * 2;

mesh.i = mesh.i.flat();
mesh.v = mesh.v.flat();
mesh.n = mesh.n.flat();
mesh.t = mesh.t.flat();

this.numTris         = mesh.i.length; // number of indices

// ------------------

const s = 1.0;
this.positions = new Float32Array( mesh.v );
this.indices   = new Uint32Array( mesh.i );
this.normals   = new Float32Array( mesh.n );
this.uvs       = new Float32Array( mesh.t );
this.timer     = new Float32Array([0.0]);

this.positionBuffer = device.createBuffer({
  size:  this.positions.byteLength,
  usage: GPUBufferUsage.VERTEX | GPUBufferUsage.COPY_DST
});

this.normalBuffer = device.createBuffer({
  size:  this.normals.byteLength,
  usage: GPUBufferUsage.VERTEX | GPUBufferUsage.COPY_DST
});

this.uvBuffer = device.createBuffer({
  size:  this.uvs.byteLength,
  usage: GPUBufferUsage.VERTEX | GPUBufferUsage.COPY_DST
});

this.indicesBuffer = device.createBuffer({
  size:  this.indices.byteLength,
  usage: GPUBufferUsage.INDEX | GPUBufferUsage.COPY_DST
});

this.timerBuffer = device.createBuffer({
  size:  4, // single float
  usage: GPUBufferUsage.UNIFORM | GPUBufferUsage.COPY_DST
});

device.queue.writeBuffer(this.positionBuffer, 0, this.positions);
device.queue.writeBuffer(this.normalBuffer  , 0, this.normals  );
device.queue.writeBuffer(this.indicesBuffer , 0, this.indices  );
device.queue.writeBuffer(this.uvBuffer      , 0, this.uvs      );
device.queue.writeBuffer(this.timerBuffer   , 0, this.timer    );

// var vertWGSL = document.getElementById('vertex.wgsl').innerHTML;
// var fragWGSL = document.getElementById('fragment.wgsl').innerHTML;

var vertWGSL = `
struct Uniforms {
    modelMatrix : mat4x4<f32>,
    viewMatrix  : mat4x4<f32>,
    projMatrix  : mat4x4<f32>,
};
@binding(0) @group(0) var<uniform> uniforms : Uniforms;

struct VSOut {
    @builtin(position) Position : vec4<f32>,
    @location(0)       uvs      : vec2<f32>,
    @location(1)       illum    : f32,
};

@vertex
fn main(@location(0) inPos  : vec3<f32>,
        @location(1) normal : vec3<f32>,
        @location(2) uvs    : vec2<f32>) -> VSOut
{

  let mvMatrix = uniforms.viewMatrix * uniforms.modelMatrix;
  let mvp      = uniforms.projMatrix * mvMatrix;

  let lightdirection = normalize( vec3<f32>(1, 0, 1) );
  let nnormal        = normalize( -normal );

  // scale brightness based on the normal vs ref drection
  let illum = clamp( dot( lightdirection, nnormal ), 0.0, 1.0 ) * 2.0;

  var vsOut: VSOut;
  vsOut.Position   = mvp * vec4<f32>( inPos, 1.0);
  vsOut.uvs        = uvs;
  vsOut.illum      = illum;
  return vsOut;
}
`;

var fragWGSL = `
@group(0) @binding(1) var mySampler: sampler;
@group(0) @binding(2) var myTexture: texture_2d<f32>;
@group(0) @binding(3) var <uniform> myTimer:   f32;

@fragment
fn main(@location(0) uvs      : vec2<f32>,
        @location(1) illum    : f32        ) -> @location(0) vec4<f32>
{
    return vec4<f32>( illum, illum, illum, 1.0 );
}
`;

// ----------------------------------------------------------------

let textureSampler = device.createSampler({
     minFilter:    "linear",
     magFilter:    "linear",

     addressModeU: "repeat",
     addressModeV: "repeat",
     addressModeW: "repeat",
});

const img = document.createElement("img");
img.src = textureName; // 'https://webgpulab.xbdev.net/var/images/earth.jpg';
await img.decode();

const basicTexture = device.createTexture({
    size: [img.width, img.height, 1],
    format: "rgba8unorm" , // "bgra8unorm",
    usage:  GPUTextureUsage.COPY_DST | GPUTextureUsage.TEXTURE_BINDING
});

const imageCanvas = document.createElement('canvas');
imageCanvas.width =  img.width;
imageCanvas.height = img.height;
const imageCanvasContext = imageCanvas.getContext('2d');
imageCanvasContext.drawImage(img, 0, 0, imageCanvas.width, imageCanvas.height);
const imageData = imageCanvasContext.getImageData(0, 0, imageCanvas.width, imageCanvas.height);
const textureData = imageData.data;

device.queue.writeTexture( { texture: basicTexture },
            textureData,
            {   offset     :  0,
                bytesPerRow:  img.width * 4,
                rowsPerImage: img.height
             },
            [ img.width  ,  img.height,  1  ]   );

// ----------------------------------------------------------------

this.mvpUniformBuffer = device.createBuffer({
  size: 64*3,
  usage: GPUBufferUsage.UNIFORM | GPUBufferUsage.COPY_DST
});

// ----------------------------------------------------------------

this.sceneUniformBindGroupLayout = device.createBindGroupLayout({
  entries: [
    { binding: 0, visibility: GPUShaderStage.VERTEX,   buffer:  { type: "uniform"  }   },
    { binding: 1, visibility: GPUShaderStage.FRAGMENT, sampler: { type: "filtering"}   },
    { binding: 2, visibility: GPUShaderStage.FRAGMENT, texture: { sampleType: "float",
                                                                  viewDimension: "2d"} },
    { binding: 3, visibility: GPUShaderStage.FRAGMENT, buffer:  { type: "uniform"  }   },
  ]
});

this.uniformBindGroup = device.createBindGroup({
  layout:   this.sceneUniformBindGroupLayout,
  entries: [
    { binding : 0, resource: { buffer: this.mvpUniformBuffer } },
    { binding : 1, resource: textureSampler },
    { binding : 2, resource: basicTexture.createView()  },
    { binding : 3, resource: { buffer: this.timerBuffer        } }
   ],
});

// ----------------------------------------------------------------

this.pipeline = device.createRenderPipeline({
    layout: device.createPipelineLayout({bindGroupLayouts: [this.sceneUniformBindGroupLayout]}),
    vertex:   {  module    : device.createShaderModule({
                             code : vertWGSL }),
                 entryPoint: 'main',
                 buffers    : [ { arrayStride: 12, attributes: [{ shaderLocation: 0,
                                                                  format: "float32x3",
                                                                  offset: 0  }]        },
                                { arrayStride: 12, attributes: [{ shaderLocation: 1,
                                                                  format: "float32x3",
                                                                  offset: 0  }]        },
                                { arrayStride: 8,  attributes: [{ shaderLocation: 2,
                                                                  format: "float32x2",
                                                                  offset: 0  }]        }
                              ]},
    fragment: {  module    : device.createShaderModule({
                             code : fragWGSL,     }),
                 entryPoint: 'main',
                 targets: [{  format : presentationFormat  }] },
    primitive: { topology  : 'triangle-list',
                 frontFace : "ccw",
                 cullMode  : 'back',
                 stripIndexFormat: undefined },
    depthStencil: {
                 depthWriteEnabled: true,
                 depthCompare     : 'less',
                 format           : 'depth24plus' }
});


this.meshData = { active:false, p:{x:0,y:0,z:0}, r:{x:0,y:0,z:0}, s:{x:1,y:1,z:1} };

}// end create

// -------------------------------

this.getMeshData = function ()
{
    return this.meshData;
}

// ------------------------------

function buildMatrix( p, r, s )
{
    // Create the matrix in Javascript (using matrix library)
    const modelMatrix          = mat4.create();

    // create the model transform with a rotation and translation
    let translateMat = mat4.create();   mat4.fromTranslation( translateMat, Object.values(p) );
    let rotateXMat   = mat4.create();   mat4.fromXRotation(rotateXMat, r.x);
    let rotateYMat   = mat4.create();   mat4.fromYRotation(rotateYMat, r.y);
    let rotateZMat   = mat4.create();   mat4.fromZRotation(rotateZMat, r.z);
    let scaleMat     = mat4.create();   mat4.fromScaling(scaleMat, Object.values(s) );

    mat4.multiply(modelMatrix, modelMatrix,   translateMat);
    mat4.multiply(modelMatrix, modelMatrix,   rotateXMat);
    mat4.multiply(modelMatrix, modelMatrix,   rotateYMat);
    mat4.multiply(modelMatrix, modelMatrix,   rotateZMat);
    mat4.multiply(modelMatrix, modelMatrix,   scaleMat);
    return modelMatrix;
}

this.draw = async function( device, context, depthTexture, viewMatrix, projectionMatrix )
{

  // --------------------------------------------------
  // Update uniform buffer

  const modelMatrix = buildMatrix( this.meshData.p, this.meshData.r, this.meshData.s );
  device.queue.writeBuffer(this.mvpUniformBuffer, 0,    modelMatrix);
  device.queue.writeBuffer(this.mvpUniformBuffer, 64,  viewMatrix );
  device.queue.writeBuffer(this.mvpUniformBuffer, 128, projectionMatrix);


  this.timer[0] = this.timer[0] + 0.01;
  device.queue.writeBuffer(this.timerBuffer   , 0, this.timer    );

  // --------------------------------------------------

  // GPURenderPassDescriptor
  this.renderPassDescriptor = {
        colorAttachments:  [{
             view     : undefined, // asign later in frame
             loadOp:   "load", clearValue: { r: 0.0, g: 0.0, b: 0.0, a: 1.0 },
             storeOp  : 'store' }],
        depthStencilAttachment: {
             view:  depthTexture.createView(),
             depthLoadOp: "load",
             depthClearValue: 1.0,
             depthStoreOp: 'store',
          }
  };

  // -------------------------------------------------

  this.renderPassDescriptor.colorAttachments[0].view = context.getCurrentTexture().createView();

  const commandEncoder = device.createCommandEncoder();

  const renderPass = commandEncoder.beginRenderPass(this.renderPassDescriptor);
  renderPass.setPipeline(this.pipeline);
  renderPass.setBindGroup(0, this.uniformBindGroup);
  renderPass.setVertexBuffer(0, this.positionBuffer);
  renderPass.setVertexBuffer(1, this.normalBuffer);
  renderPass.setVertexBuffer(2, this.uvBuffer);
  renderPass.setIndexBuffer(this.indicesBuffer, 'uint32');
  renderPass.drawIndexed( this.numTris, 1, 0, 0);
  renderPass.end();
  await device.queue.submit([commandEncoder.finish()]);

}// end render(..)

}// end sphere
