Transparent Cubes


Transparency introduces its own challenges (other than just 'enabling' alpha mode) - you also have to make sure you draw the objects in the correct order.

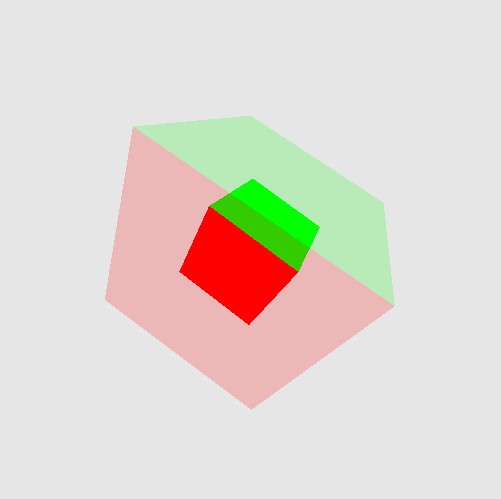

Cube inside a cube (with the outer cube transparent).
Cube inside a cube (with the outer cube transparent).


Functions Used: setVertexBuffer(), setIndexBuffer(), drawIndexed(), createBuffer(), getMappedRange(), getContext(), requestAdapter(), getPreferredCanvasFormat(), createCommandEncoder(), beginRenderPass(), setPipeline(), draw(), end(), submit(), getCurrentTexture(), createView(), createShaderModule()


Enabling the alpha mode in the context configuration - also the 'blend' details in the fragment shader (pipeline). Then it's just a matter of setting the alpha information. Instead of setting the alpha for each vertex - we pass an alpha value as a uniform to the fragment shader - then for each cube we can set the alpha value.

Make sure you draw the cubes in the correct order. If you draw the larger cube first - the alpha won't be able to 'mix' with anything behind it - as the little cube hasn't be drawn yet. Also, the big cube will update the depth buffer - so the little cube which sits inside the big cube won't be drawn (it'll be discarded due to the depth).



// Load matrix library on dynamically (on-the-fly)
let matprom = await fetch( 'https://cdnjs.cloudflare.com/ajax/libs/gl-matrix/2.6.0/gl-matrix-min.js' );
let mattex  = await matprom.text();
var script   = document.createElement('script');
script.type  = 'text/javascript';
script.innerHTML = mattex;
document.head.appendChild(script);


const canvas = document.createElement('canvas');
document.body.appendChild( canvas );
canvas.width  = canvas.height = 512;

const gpu = navigator.gpu;
console.log( 'navigator.gpu:', gpu );

const adapter = await gpu.requestAdapter();
const device  = await adapter.requestDevice();
const context = canvas.getContext('webgpu');

const presentationFormat = navigator.gpu.getPreferredCanvasFormat();  // context. getPreferredFormat(adapter); - no longer supported
context.configure({
  device,
  format: presentationFormat,
  alphaMode: 'premultiplied',  /* IMPORTANT IMPORTANT - vs default opacity */
});

////////////////////////////////////////
// Create vertex buffers and load data
////////////////////////////////////////

function createCube()
{
    // unit cube
    const cubeVertexArray = new Float32Array([
      // position,   color
       1, -1,  1,   1, 0, 0,
      -1, -1,  1,   1, 0, 0,
      -1, -1, -1,   1, 0, 0,
       1, -1, -1,   1, 0, 0,
       1, -1,  1,   1, 0, 0,
      -1, -1, -1,   1, 0, 0,

       1,  1,  1,   0, 1, 0,
       1, -1,  1,   0, 1, 0,
       1, -1, -1,   0, 1, 0,
       1,  1, -1,   0, 1, 0,
       1,  1,  1,   0, 1, 0,
       1, -1, -1,   0, 1, 0,

      -1,  1,  1,   0, 0, 1,
       1,  1,  1,   0, 0, 1,
       1,  1, -1,   0, 0, 1,
      -1,  1, -1,   0, 0, 1,
      -1,  1,  1,   0, 0, 1,
       1,  1, -1,   0, 0, 1,

      -1, -1,  1,   1, 1, 0,
      -1,  1,  1,   1, 1, 0,
      -1,  1, -1,   1, 1, 0,
      -1, -1, -1,   1, 1, 0,
      -1, -1,  1,   1, 1, 0,
      -1,  1, -1,   1, 1, 0,

       1,  1,  1,   1, 0, 1,
      -1,  1,  1,   1, 0, 1,
      -1, -1,  1,   1, 0, 1,
      -1, -1,  1,   1, 0, 1,
       1, -1,  1,   1, 0, 1,
       1,  1,  1,   1, 0, 1,

       1, -1, -1,   0, 1, 1,
      -1, -1, -1,   0, 1, 1,
      -1,  1, -1,   0, 1, 1,
       1,  1, -1,   0, 1, 1,
       1, -1, -1,   0, 1, 1,
      -1,  1, -1,   0, 1, 1,
    ]);

    const gpuBuffer = device.createBuffer({ size:  cubeVertexArray.byteLength,
                                            usage: GPUBufferUsage.VERTEX | GPUBufferUsage.COPY_DST });

    device.queue.writeBuffer(gpuBuffer, 0, cubeVertexArray);

    return { buffer:gpuBuffer, numVertices:36, stride:6*4 };
}

// --------------------------------------------------------------------------

let basicVertWGSL = `
@group(0) @binding(0) var<uniform> timer : f32;

struct Transforms {
    model      : mat4x4<f32>,
    view       : mat4x4<f32>,
    projection : mat4x4<f32>,
};
@group(0) @binding(1) var<uniform> transforms : Transforms;

struct VertexOutput {
  @builtin(position) Position : vec4<f32>,
  @location(0) fragColor      : vec3<f32>
};

@vertex
fn main(@location(0) position : vec3<f32>,
        @location(1) color    : vec3<f32>) -> VertexOutput {

  var mvp = transforms.projection * transforms.view * transforms.model;

  var output : VertexOutput;
  output.Position     = mvp * vec4<f32>(position, 1.0);
  output.fragColor    = color;
  return output;
}
`;

let = basicPixelWGSL = `
@group(0) @binding(2) var<uniform> alpha : f32;

@fragment
fn main(@location(0) fragColor:   vec3<f32>) -> @location(0) vec4<f32> {

  return vec4<f32>(fragColor, alpha);

  // if you want a 'constant' color for the shape
  // return vec4<f32>(1.0, 0.0, 0.0, 1.0);
}
`;

// ----------------------------------------------------------------

function buildMatrix( p, r, s ) // position, rotation, scale
{
    // if not set fall back to default values
    if (!s) s = {x:1, y:1, z:1};
    if (!r) r = {x:0, y:0, z:0};
    if (!p) p = {x:0, y:0, z:0};

    // Create the matrix in Javascript (using matrix library)
    const modelMatrix          = mat4.create();

    // create the model transform with a rotation and translation
    let translateMat = mat4.create();   mat4.fromTranslation( translateMat, Object.values(p) );
    let rotateXMat   = mat4.create();   mat4.fromXRotation(rotateXMat, r.x);
    let rotateYMat   = mat4.create();   mat4.fromYRotation(rotateYMat, r.y);
    let rotateZMat   = mat4.create();   mat4.fromZRotation(rotateZMat, r.z);
    let scaleMat     = mat4.create();   mat4.fromScaling(scaleMat, Object.values(s) );

    mat4.multiply(modelMatrix, modelMatrix,   translateMat);
    mat4.multiply(modelMatrix, modelMatrix,   rotateXMat);
    mat4.multiply(modelMatrix, modelMatrix,   rotateYMat);
    mat4.multiply(modelMatrix, modelMatrix,   rotateZMat);
    mat4.multiply(modelMatrix, modelMatrix,   scaleMat);
    return modelMatrix;
}

// build a model matrix (scale, rotate and position it wherever we want)
let modelMatrix = buildMatrix();

// setup the projection
let projectionMatrix = mat4.create();
mat4.perspective(projectionMatrix, Math.PI / 2, canvas.width / canvas.height, 0.001, 500.0);

// default camera `lookat` - camera is at -4 units down the z-axis looking at '0,0,0'
let viewMatrix = mat4.create();
mat4.lookAt(viewMatrix, [0,0,-3.0],  [0,0,0], [0, 1, 0]);


let mvpUniformBuffer = device.createBuffer({
  size: 64*3,
  usage: GPUBufferUsage.UNIFORM | GPUBufferUsage.COPY_DST
});

device.queue.writeBuffer(mvpUniformBuffer,      0,      modelMatrix);
device.queue.writeBuffer(mvpUniformBuffer,      64,     viewMatrix);
device.queue.writeBuffer(mvpUniformBuffer,      128,    projectionMatrix);

// ----------------------------------------------------------------

const timerUniformBuffer = device.createBuffer({ size:  4, // single float for the timer
                                               usage: GPUBufferUsage.UNIFORM | GPUBufferUsage.COPY_DST});

let timeData = new Float32Array( [0.0]);
device.queue.writeBuffer(timerUniformBuffer,   0,    timeData );

// ----------------------------------------------------------------

const alphaUniformBuffer = device.createBuffer({ size:  4, // single float for the timer
                                               usage: GPUBufferUsage.UNIFORM | GPUBufferUsage.COPY_DST});

let alphaData = new Float32Array( [1.0]);
device.queue.writeBuffer(alphaUniformBuffer,   0,    alphaData );

// ----------------------------------------------------------------

const sceneUniformBindGroupLayout = device.createBindGroupLayout({
  entries: [ { binding: 0, visibility: GPUShaderStage.VERTEX,   buffer: { type: "uniform" } },
             { binding: 1, visibility: GPUShaderStage.VERTEX,   buffer: { type: "uniform" } },
             { binding: 2, visibility: GPUShaderStage.FRAGMENT, buffer: { type: "uniform" } },
           ]
});

const sceneUniformBindGroup = device.createBindGroup({
  layout: sceneUniformBindGroupLayout,
  entries: [ {  binding: 0, resource: { buffer: timerUniformBuffer  } },
             {  binding: 1, resource: { buffer: mvpUniformBuffer    } },
             {  binding: 2, resource: { buffer: alphaUniformBuffer  } },
           ]
});

// ----------------------------------------------------------------

let cubeData = createCube();

// ----------------------------------------------------------------

const pipeline = device.createRenderPipeline({
  layout: device.createPipelineLayout({bindGroupLayouts: [sceneUniformBindGroupLayout]}),
  vertex: {
    module: device.createShaderModule({
      code: basicVertWGSL
    }),
    entryPoint: "main",
    buffers: [ {arrayStride: cubeData.stride,
                attributes: [ {shaderLocation: 0, offset: 0,      format: 'float32x3' }, // position
                              {shaderLocation: 1, offset: 3*4,    format: 'float32x3'  } // color
             ] } ]
  },
  fragment: {
    module: device.createShaderModule({ code: basicPixelWGSL }),
    entryPoint: "main",
    targets: [{ format: presentationFormat,
                blend: { color: {srcFactor:'src-alpha', dstFactor:"one-minus-src-alpha" ,operation:"add"},
                               alpha: {srcFactor:'one',       dstFactor:"one" ,                operation:"add"}  }
              }]
  },
  primitive: {
    topology: "triangle-list",
    cullMode: 'back'
  },
  depthStencil: {
    format: "depth24plus",
    depthWriteEnabled: true,
    depthCompare: "less"
  }
});


const depthTexture = device.createTexture({
  size: [canvas.width, canvas.height, 1],
  format: "depth24plus",
  usage:  GPUTextureUsage.RENDER_ATTACHMENT
})

let rotation = {x:0, y:0, z:0};

function draw() {

  // update uniform buffer
  timeData[0] += 0.005;
  device.queue.writeBuffer(timerUniformBuffer, 0, timeData);

  // Draw 2 cubes - on inside the other
  for (let k=0; k<2; k++)
  {
      // update rotation on local cube
      rotation.x += 0.02;
      rotation.y += 0.03;
      rotation.z += 0.01;

      let scale = {x:1, y:1, z:1};
      if ( k==0 )
      {
         alphaData[0] = 1.0;
         scale.x = scale.y = scale.z = 0.5;
      }
      if ( k==1 )
      {
         alphaData[0] = 0.2;
         scale.x = scale.y = scale.z = 1.0;
      }

      device.queue.writeBuffer(alphaUniformBuffer,   0,    alphaData );


      modelMatrix = buildMatrix( null, rotation, scale );
      device.queue.writeBuffer(mvpUniformBuffer,      0,      modelMatrix);


      const renderPassDescription = {
          colorAttachments: [{
            view: context.getCurrentTexture().createView(),
            loadOp: ( k==0 ? "clear":"load" ),
            clearValue: [0.9, 0.9, 0.9, 1], // clear screen color
            storeOp: 'store'
          }],
          depthStencilAttachment: {
            view: depthTexture.createView(),
            depthLoadOp:  ( k==0 ? "clear":"load"),
            depthClearValue: 1,
            depthStoreOp: "store",
          }
      };

      renderPassDescription.colorAttachments[0].view = context.getCurrentTexture().createView();

      const commandEncoder = device.createCommandEncoder();
      const renderPass = commandEncoder.beginRenderPass(renderPassDescription);

      renderPass.setPipeline(pipeline);
      renderPass.setVertexBuffer(0, cubeData.buffer);
      renderPass.setBindGroup(0, sceneUniformBindGroup);
      renderPass.draw(cubeData.numVertices, 1, 0, 0);
      renderPass.end();

      device.queue.submit([commandEncoder.finish()]);
  }

  requestAnimationFrame(draw);
};

draw();
