Neural Networks and WebGPU Compute..

Learning from Data.....




Sine Wave


Having a neural network learn the sine wave function - pass in a single floating point value and it outputs the amplitude of the sinewave signal. Essentially, emulating the
sin(..)
function.

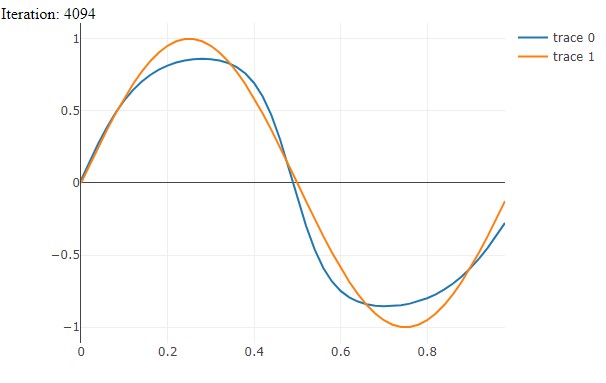

Training neural network to emulate a sine wave signal.
Training neural network to emulate a sine wave signal.



Complete Code


let fp = await fetch('https://cdn.plot.ly/plotly-2.1.0.min.js');
let ft = await fp.text();
var script = document.createElement('script');
//script.src = 'https://cdn.plot.ly/plotly-2.1.0.min.js';
script.innerHTML = ft;
document.head.appendChild(script);


await xinitialize( {layers:[1,17,17,1], build:'cpu', learningrate:0.2} );

// sine wave signal - deep neural network
// (1) time (time index for input)
// (17,17) hidden layers
// (1) amplitude


// SINE WAVE


let noSamples       = 50;
let iteration       = 0;
var trainingSet;// = [];


// Function to shuffle data
function shuffle(array) {
    for (let i = array.length - 1; i > 0; i--) {
        const j = Math.floor(Math.random() * (i + 1));
        [array[i], array[j]] = [array[j], array[i]];
    }
    return array;
}

// Function to create mini-batches
function createMiniBatches(data, batchSize) {
    let miniBatches = [];
    for (let i = 0; i < data.length; i += batchSize) {
        miniBatches.push(data.slice(i, i + batchSize));
    }
    return miniBatches;
}

async function calcTotalError()
{
  let totalError = 0;
  for (let tt = 0; tt < noSamples; tt+=1)
  {
    // nn value
    let amp = await xactivate( [ tt/noSamples ] );
    let val = amp[0] * 2.0 - 1.0;

    // ideal value
    let t = 2 * Math.PI * tt/noSamples;
    let mval = Math.sin( t );

    totalError = totalError + Math.abs( val - mval );
  }

  let elem2 = document.getElementById('error');
    if ( elem2==undefined ){ elem2 = document.createElement('div');
                             elem2.id = 'error';
                             document.body.appendChild( elem2 ); };
  elem2.innerHTML = "Error: " + totalError;
}

// iteration starts once the data has been loaded
async function iterate(){

  iteration++;

  let elem1 = document.getElementById('counter');
    if ( elem1==undefined ){ elem1 = document.createElement('div');
                             elem1.id = 'counter';
                             document.body.appendChild( elem1 ); };
  elem1.innerHTML = "Iteration: " + iteration;


  if ( (iteration%10) === 0 ) // only update graph every 5 iterations
  {
    await plotData();
  }

  //calcTotalError();

  if (trainingSet == undefined )
  {
        console.log('creating dataset');
    trainingSet = [];

    for (let tt = 0; tt < noSamples; tt+=1)
    {
      let t = 2 * Math.PI * tt/noSamples;

      //console.assert(t>=0 && t<=1 );
      let amp = Math.sin( t );  //-1 to 1

      let ampNormalized = (amp + 1.0)*0.5; // 0 to 1
      console.assert( ampNormalized >= 0 );
      console.assert( ampNormalized <= 1 );

      trainingSet.push( {inputs: [tt/noSamples],
                         outputs:[ampNormalized] } );

    }
  }

  const NUM_EPOCHS = 5;
  const BATCH_SIZE = 20;

  for (let epoch = 0; epoch < NUM_EPOCHS; epoch++)
  {
      let shuffledData = shuffle(trainingSet);
    let miniBatches = createMiniBatches(shuffledData, BATCH_SIZE);

      for (let miniBatch=0; miniBatch<miniBatches.length; miniBatch++)
      {
        let batches = miniBatches[ miniBatch ];
          for (let bat=0; bat<batches.length; bat++)
          {
              let datum = batches[ bat ];
              await xactivate( datum.inputs );
              await xpropagate( datum.outputs );
          };
      };
  }
  requestAnimationFrame( iterate);
}

requestAnimationFrame( iterate );

async function plotData()
{
    // plot trained data
    {
  let x = [];
  let y = [];
  let y2 = [];
  for (let tt = 0; tt < noSamples; tt+=1)
  {
    let t = 2 * Math.PI * tt/noSamples;
    let amp = await xactivate( [ tt/noSamples ] );

    let val = amp[0] * 2.0 - 1.0;
    x.push( tt/noSamples  );
    y.push( val )
    y2.push( Math.sin( t ) );
  }

  let plot1 = document.getElementById('plot1');
    if ( plot1==undefined ){ plot1 = document.createElement('div');
                             plot1.id = 'plot1';
               plot1.style.width  = '600px';
                             plot1.style.height = '400px';
                             document.body.appendChild( plot1 ); };


  Plotly.newPlot( plot1, [{ x, y}], {
                margin: { t: 0 } }, {showSendToCloud:true} );

  // plot ideal data
  Plotly.addTraces( plot1, {x, y: y2} );
  }
}// end plotData(..)
