Fractals

Natures pattern...

Fractals > Signed Distance Function (SDF) Fractals

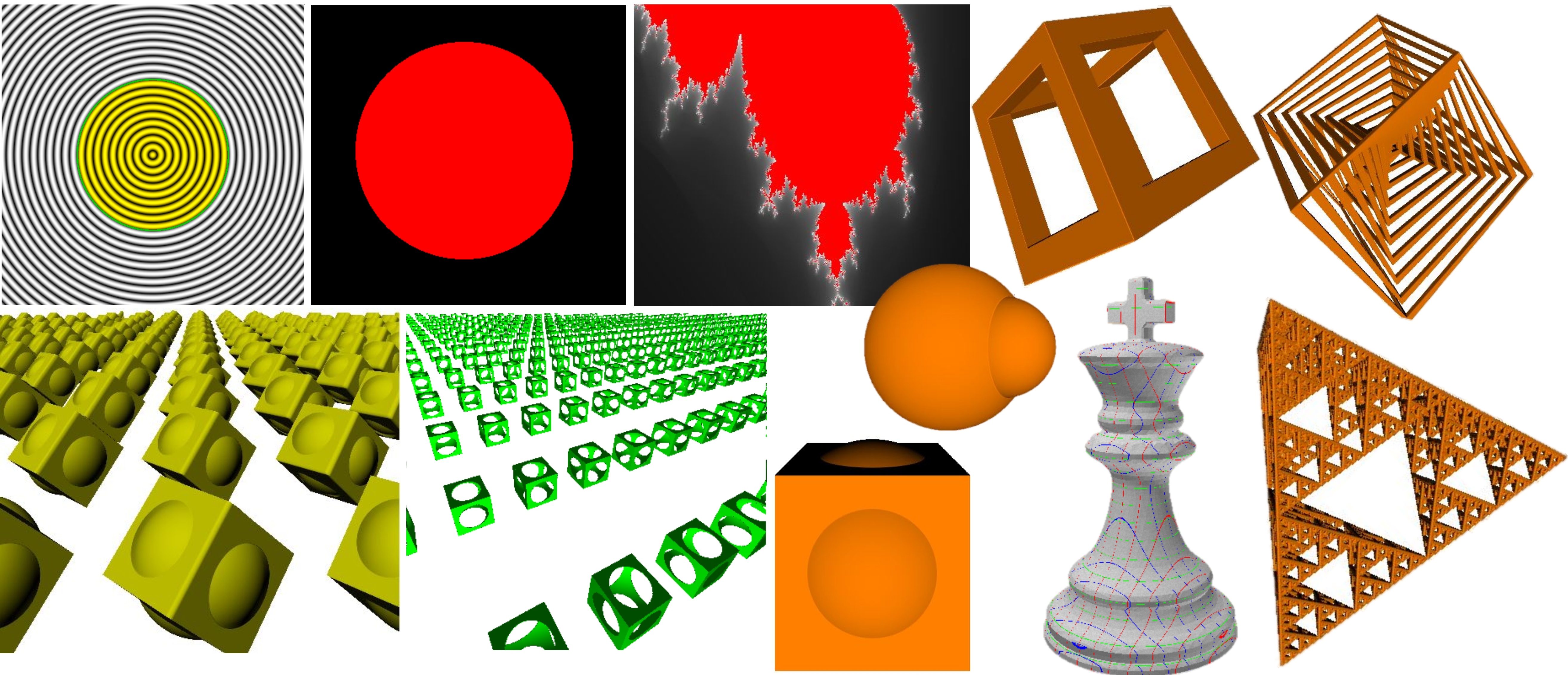

Lots of things around SDF functions and fractals, there are the key things we'll talk about about here:

1. What are SDF Functions?
2. Simple SDF (WebGL/GLSF) Example (Sphere)
3. 'Flat' Fractal (2D)
4. 3D Shapes (Solid Sphere, Hollow-Sphere, Shell, ...)
5. Adding function (create more complex shapes)
6. Multiple shapes (hard way vs smart way)
7. Multiple operations to build fractals
8. Scene full of fractals
9. Limitations, challenges (soft fractals without details)

What are 'Signed Distance Functions' (SDFs)?

A signed distance function is a mathematical concept used in computer graphics to describe the distance from a point in space to the closest surface of an object, with a positive or negative sign indicating whether the point is inside or outside the object.

Takes a 'point' (usually 3d point) and returns a single number (usually a float).

For example, in 3D sphere, the signed distance function at a point (x, y, z) would be the radius of the sphere minus the distance from (x, y, z) to the center if the point is inside the sphere, and negative if it's outside.

This function is valuable in rendering techniques like ray-marching, where it helps determine intersections with objects in a scene efficiently.

SDF Examples (Spheres)

The SDF function requires a single parameter for the position that it's calculating the distance so the surface - other arguments can be passed as well - such as the radius, ..

SDF WebGL/GLSL for 'Circle'

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Simple Circle SDF</title>
    <style>
        body { margin: 0; }
        canvas { display: block; }
    </style>
</head>
<body>
    <canvas id="canvas"></canvas>

const fragmentShaderSource = `
            precision mediump float;

uniform vec3 u_resolution;

float circleSDF(vec2 p, float radius) {
                return length(p) - radius;
            }

void main() {
                vec2 uv = gl_FragCoord.xy / u_resolution.xy;
                uv = uv * 2.0 - 1.0; // Map uv coordinates to range [-1, 1]

float radius = 0.5; // Circle radius
                float sdf = circleSDF(uv, radius);

                if (sdf < 0.0) {
                    gl_FragColor = vec4(1.0, 0.0, 0.0, 1.0); // Inside the circle, color red
                } else {
                    gl_FragColor = vec4(0.0, 0.0, 0.0, 1.0); // Outside the circle, color black
                }
            }
        `;

function createShader(gl, type, source) {
            const shader = gl.createShader(type);
            gl.shaderSource(shader, source);
            gl.compileShader(shader);
            if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) {
                console.error('An error occurred compiling the shaders: ' + gl.getShaderInfoLog(shader));
                gl.deleteShader(shader);
                return null;
            }
            return shader;
        }

function createProgram(gl, vertexShader, fragmentShader) {
            const program = gl.createProgram();
            gl.attachShader(program, vertexShader);
            gl.attachShader(program, fragmentShader);
            gl.linkProgram(program);
            if (!gl.getProgramParameter(program, gl.LINK_STATUS)) {
                console.error('Unable to initialize the shader program: ' + gl.getProgramInfoLog(program));
                return null;
            }
            return program;
        }

function main() {
            const canvas = document.getElementById('canvas');
            const gl = canvas.getContext('webgl');
            if (!gl) {
                console.error('Unable to initialize WebGL. Your browser may not support it.');
                return;
            }

// Compile vertex and fragment shaders
            const vertexShader = createShader(gl, gl.VERTEX_SHADER, vertexShaderSource);
            const fragmentShader = createShader(gl, gl.FRAGMENT_SHADER, fragmentShaderSource);

// Create shader program
            const program = createProgram(gl, vertexShader, fragmentShader);
            gl.useProgram(program);

// Set up vertex buffer
            const positionBuffer = gl.createBuffer();
            gl.bindBuffer(gl.ARRAY_BUFFER, positionBuffer);
            const positions = [
                -1.0, -1.0,
                 1.0, -1.0,
                -1.0,  1.0,
                -1.0,  1.0,
                 1.0, -1.0,
                 1.0,  1.0,
            ];
            gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(positions), gl.STATIC_DRAW);
            const positionAttributeLocation = gl.getAttribLocation(program, 'a_position');
            gl.enableVertexAttribArray(positionAttributeLocation);
            gl.vertexAttribPointer(positionAttributeLocation, 2, gl.FLOAT, false, 0, 0);

// Set resolution uniform
            const resolutionUniformLocation = gl.getUniformLocation(program, 'u_resolution');
            gl.uniform2f(resolutionUniformLocation, canvas.width, canvas.height);

// Clear canvas
            gl.clearColor(0.0, 0.0, 0.0, 1.0);
            gl.clear(gl.COLOR_BUFFER_BIT);

// Draw
            gl.drawArrays(gl.TRIANGLES, 0, 6);
        }

main();
    </script>
</body>
</html>

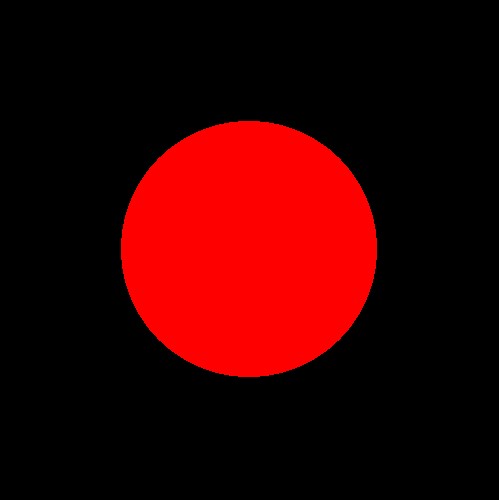

simple sdf 2d example that generates a circle — Output for the 2-dimensional circle SDF function .

Extending the Example (Sphere to Mandelbrot Set Fractal)

<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Mandelbrot Set Fractal</title>
    <style>
        body { margin: 0; }
        canvas { display: block; }
    </style>
</head>
<body>
    <canvas id="canvas" width='500' height='500'></canvas>

const fragmentShaderSource = `
            precision mediump float;

uniform vec2 u_resolution;

void main() {
                vec2 uv = gl_FragCoord.xy / u_resolution.xy;

                // Map the range to the complex plane (-2, -1) to (1, 1)
                float aspectRatio = u_resolution.x / u_resolution.y;
                vec2 c = vec2((uv.x - 0.5) * 3.0 * aspectRatio, uv.y - 0.5 * 2.0);

                vec2 z = vec2(0.0);
                const int MAX_ITERATIONS = 30;
                int iterations = 0;

for (int i = 0; i < MAX_ITERATIONS; i++) {
                    float x = z.x;
                    float y = z.y;

// Mandelbrot iteration formula: z = z^2 + c
                    float xtemp = x * x - y * y + c.x;
                    y = 2.0 * x * y + c.y;
                    x = xtemp;

z = vec2(x, y);

// Escape condition: |z| > 2
                    if (length(z) > 2.0) {
                        break;
                    }

                    iterations++;
                }

// Smooth coloring based on the number of iterations
                float smoothedIterations = float(iterations) + 1.0 - log(log(length(z))) / log(2.0);
                float colorValue = smoothedIterations / float(MAX_ITERATIONS);

// Set color: inside of the Mandelbrot set is red
                if (iterations == MAX_ITERATIONS) {
                    gl_FragColor = vec4(1.0, 0.0, 0.0, 1.0); // Red color for inside of the set
                } else {
                    gl_FragColor = vec4(colorValue, colorValue, colorValue, 1.0); // Grayscale color for outside of the set
                }

// Set color
                //gl_FragColor = vec4(colorValue, colorValue, colorValue, 1.0);
            }
        `;

// Create shader program
            const program = createProgram(gl, vertexShader, fragmentShader);
            gl.useProgram(program);

// Clear canvas
            gl.clearColor(0.0, 0.0, 0.0, 1.0);
            gl.clear(gl.COLOR_BUFFER_BIT);

// Draw
            gl.drawArrays(gl.TRIANGLES, 0, 6);
        }

main();
    </script>
</body>
</html>

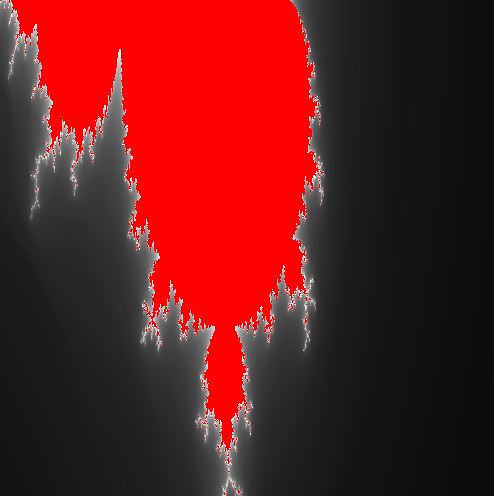

simple sdf 2d example that generates 2d fractal — Output for the 2-dimensional Mandelbrot Set SDF function .

SDF for a Sphere (3D)

<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Simple Sphere SDF</title>
    <style>
        body { margin: 0; }
        canvas { display: block; }
    </style>
</head>
<body>
    <canvas id="canvas" width='500' height='500'></canvas>

const fragmentShaderSource = `
            precision highp float;

uniform vec2 u_resolution;

varying vec3 v_position;

float sdfSphere( vec3 testPoint, vec3 spherePos, float sphereRadius) {
                return length(spherePos - testPoint) - sphereRadius;
            }

float rayCast( vec3 position ) {
               float t = 0.0; // far distance
               t = sdfSphere(position, vec3(0.0,0,0), 1.0 );
               return t;
            }

float rayTrace( vec3 rayPos, vec3 rayDir) {
               float t = 0.0;
               for (int i = 0; i < 200 ; i++)
               {
                   vec3 rayPosition = rayPos + rayDir * t;
                   t += rayCast(rayPosition);
                   if ( t < 0.0 || t > 1000.0 )
                   {
                       return 0.0; // no hit
                   }
               }
               return t;
            }

vec3 getNormal( vec3 pt ) {
                float d = rayCast( pt );
                float s = 0.01;
                vec3 a = vec3(pt.x + s, pt.y,     pt.z    );
                vec3 b = vec3(pt.x,     pt.y + s, pt.z    );
                vec3 c = vec3(pt.x,     pt.y,     pt.z + s);
                vec3 normal = normalize(vec3( rayCast(a) - d,
                                              rayCast(b) - d,
                                              rayCast(c) - d) );
                return normal;
            }

void main() {
                vec2 uv = gl_FragCoord.xy / u_resolution.xy;
                uv = uv * 2.0 - 1.0; // Map uv coordinates to range [-1, 1]

// Convert 2D UV to 3D position
                vec3 rayDir = normalize(vec3(uv, -1.0));
                vec3 rayPos = vec3(0.0, 0.0, 2.0);

vec3 fragColor = vec3(0.2, 0, 0);

                float res = rayTrace(rayPos, rayDir);
                if (res > 0.0 )
                {
                    fragColor = vec3(1.0, 0.5, 0.0);

                    vec3 n = getNormal( rayPos + rayDir*res );
                    vec3 lightDirection = vec3(0.0, 0.0, 1.0);
                    fragColor = fragColor * min( dot( n, lightDirection ), 1.0 );
                }
                gl_FragColor = vec4( fragColor, 1.0);
            }
        `;

// Create shader program
            const program = createProgram(gl, vertexShader, fragmentShader);
            gl.useProgram(program);

// Set up vertex buffer
            const positionBuffer = gl.createBuffer();
            gl.bindBuffer(gl.ARRAY_BUFFER, positionBuffer);
            const positions = [
                -1.0, -1.0, 0.0,
                 1.0, -1.0, 0.0,
                -1.0,  1.0, 0.0,
                -1.0,  1.0, 0.0,
                 1.0, -1.0, 0.0,
                 1.0,  1.0, 0.0,
            ];
            gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(positions), gl.STATIC_DRAW);
            const positionAttributeLocation = gl.getAttribLocation(program, 'a_position');
            gl.enableVertexAttribArray(positionAttributeLocation);
            gl.vertexAttribPointer(positionAttributeLocation, 3, gl.FLOAT, false, 0, 0);

// Clear canvas
            gl.clearColor(0.0, 0.0, 0.0, 1.0);
            gl.clear(gl.COLOR_BUFFER_BIT);

// Draw
            gl.drawArrays(gl.TRIANGLES, 0, 6);
        }

main();
    </script>
</body>
</html>

Bit of Light

Without lighting the 3D sphere looks exactly the same as the 2D sphere - you can't see depth or changes in the surface - but we can write a simple function to calcualte the surface normal from the point.

To calculate the surface normal using the SDF function, you can approximate it by taking the gradient of the SDF at a given point.

The fragment shader code that calculates the normal for the surface using the SDF function and then use it to calculate lighting.

Combining Shapes (Unions)

This is a crucial component - as you can easily add or subtract simple SDF functions to create new shapes. This is important for 'fractals' - as you'll see, it means you can combine shapes to make smaller sub-shapes.

For instance, it is possible to combine two distance fields using a simple `minimum(a,b)`` operator. As an example we could draw the union of two spheres.

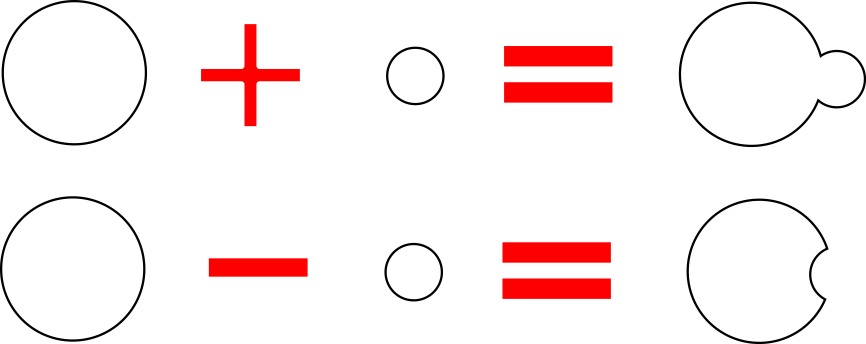

simple sdf combining — Add or subtract SDF functions to construct new shapes.

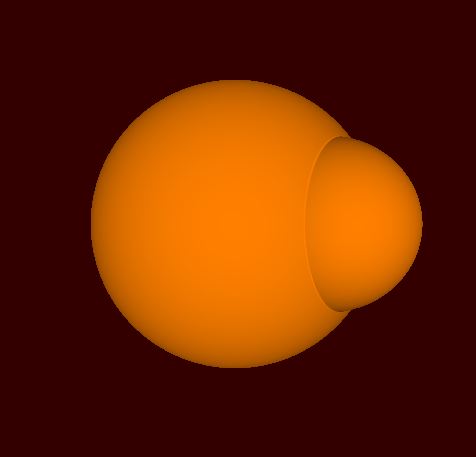

This would give us two spheres with unit radius, one centered at origo, and another at `(2,0,0)`. The same way it is possible to calculate the intersection of two objects, by taking the maximum value of the fields.

Finally, if you are using signed distance functions, it is possible to subtract one shape from another by inverting one of the fields, and calculating the intersection (i.e. taking `max(A, -B)`).

Take the concept of combining objects further - apply local transforms to create amazing effects (e.g., stretch, rotate, skew and then add them together - you can also do this in a 'loop'.

Construct a 'rayCast' function which can combine multiple different sdf functions in one place (transform, add, subtract, ...).

Other SDF Shapes

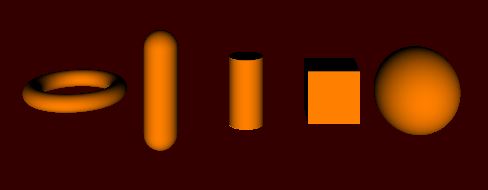

mix of basic sdf shape functions — Example of different common sdf shape functions (cube, sphere, cyclinder, capsule, torus).

Cube-Sphere Union

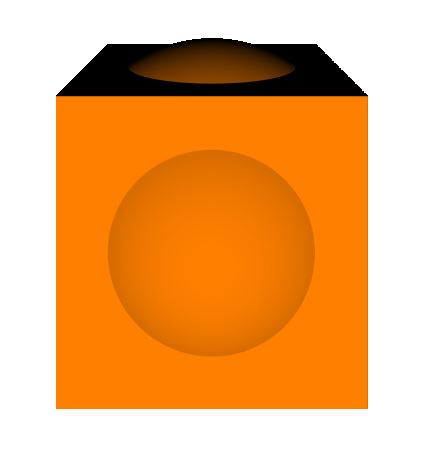

union of sphere and cube - create cubesphere — Union of a cube and sphere - create 'cubesphere'.

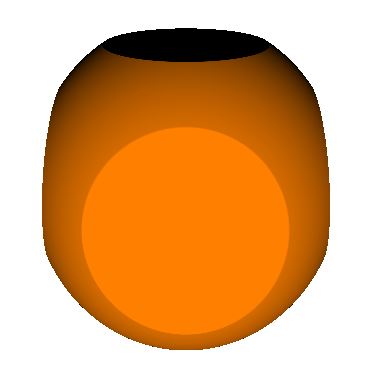

If you use 'max' - to subtract the shapes, you'll get this:

Cube Hole (Cube Cut Cube)

Subtract a cube from a cube to hollow out the inside - initial work for later on when we'll do this recursively to build a fractal shape.

This example, the values are hard coded - for easy reading - but we can calculate the offsets and sizes later on to 'chizzel' away at a shape to make it 'fractal'.

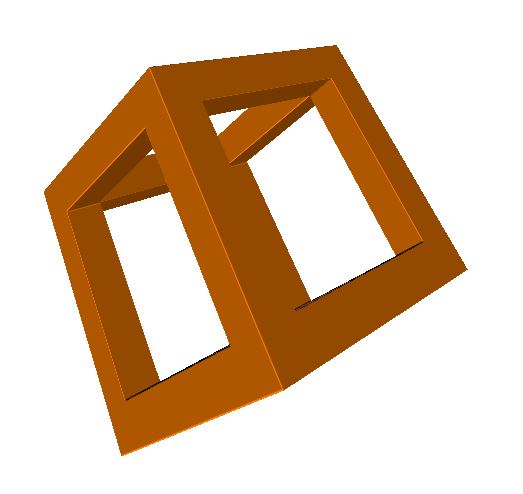

sdf bar box — SDF Cube - but then we position and subtract rectangles for the front, top and side - the rectangle is long and thin. Think of it, like poking a hole through the shape..

Cube in Cube (Adding and Cutting Iteratively)

Iteratively add and cut to create shapes - for example, the following adds cube and cuts out the centre.

You can take the concept further by mixing on rotation - for each iteration add a small 'rotation'.

float sdfCubeCube( vec3 pt )
{
	float t = 1000000.0;
    const int Iterations = 44;
    const float Scale = 0.05;

float s = 1.0;
	for(int j = 0; j < Iterations; j++)
    {
        // Rotation
        float x = float(j)*0.03;
        float y = float(j)*0.01;
        mat4 Rx = mat4(
            vec4(cos(x), -sin(x), 0.0, 0.0),
            vec4(sin(x), cos(x), 0.0, 0.0),
            vec4(0.0, 0.0, 1.0, 0.0),
            vec4(0.0, 0.0, 0.0, 1.0)
        );
        mat4 Ry = mat4(
            vec4(cos(y), 0.0, sin(y), 0.0),
            vec4(0.0, 1.0, 0.0, 0.0),
            vec4(-sin(y), 0.0, cos(y), 0.0),
            vec4(0.0, 0.0, 0.0, 1.0)
        );

vec3 pr = (vec4(pt, 1.0) * (Ry * Rx)).xyz;


    	if ( mod2( float(j), 2.0) == 0.0 )
        {
           t = min( t, sdfCube( pr, vec3(0), vec3(1.0)*s ) );
        }
        else
        {
           t = max( t, -sdfCube( pr, vec3(0), vec3(1.0,  1.0,   11.0)*s) );
           t = max( t, -sdfCube( pr, vec3(0), vec3(1.0,  11.0,  1.0 )*s) );
           t = max( t, -sdfCube( pr, vec3(0), vec3(11.0, 1.0,   1.0 )*s) );
        }
        s = s - Scale;
    }
	return t;
}

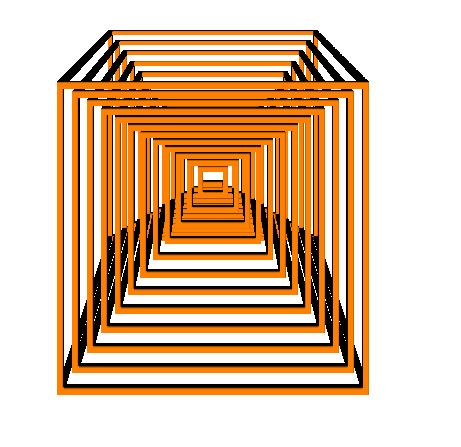

sdf cube in cube with a twist — SDF cube in cube operations with a small rotation causing a twist and warping effect of the inner bars.

Complexity (Lots of Shapes) - 'mod'

This is all nice, but even if you can create interesting structures, there are some limitations. The above method works fine, but scales very badly when the number of distance fields to be combined increases. Creating a scene with 1000 spheres by finding the minimum of the 1000 fields would already become too slow for real-time purposes. In fact ordinary ray tracing scales much better – the use of spatial acceleration structures makes it possible for ordinary ray tracers to draw scenes with millions of objects, something that is far from possible using the “find minimum of all object fields” distance field approach sketched above.

But fractals are all about detail, and endless complexity, so how do we proceed?

It turns out that there are some tricks, that makes it possible to add complexity in ways that scales much better.

First, it is possible to reuse (or instance) objects using e.g. the modulo-operator. Take a look at the following DE:

Example - Rotating and Repeating Cube-Spheres

// build in one is called 'mod' - but have included my own 'mymod' here - just so you can
// see what it's actually doing inside the function ;)
fn mymod(float x, float y)
{
	return ( x - y * floor(x/y) );
}

float rayCast(vec3 ptin) {
    // repeat across the x-z plane
    float ssx = 1.0;
    float ssz = 2.0;
    vec3 position = vec3(
        mymod(ptin.x + ssx * 2.0, ssx * 4.0) - ssx * 2.0,
        ptin.y,
        mymod(ptin.z + ssz * 2.0, ssz * 4.0) - ssz * 2.0
    );
    float t = 0.0;

// Rotation
    float x = 0.2;
    float y = 0.7;
    mat4 Rx = mat4(
        vec4(cos(x), -sin(x), 0.0, 0.0),
        vec4(sin(x), cos(x), 0.0, 0.0),
        vec4(0.0, 0.0, 1.0, 0.0),
        vec4(0.0, 0.0, 0.0, 1.0)
    );
    mat4 Ry = mat4(
        vec4(cos(y), 0.0, sin(y), 0.0),
        vec4(0.0, 1.0, 0.0, 0.0),
        vec4(-sin(y), 0.0, cos(y), 0.0),
        vec4(0.0, 0.0, 0.0, 1.0)
    );

vec3 pt = (vec4(position, 1.0) * (Ry * Rx)).xyz;

    t = sdfCube(pt, vec3(0.0, 0.0, 0.0), vec3(1.0));
    t = min(t, sdfSphere(pt, vec3(0.0, 0.0, 0.0), 1.2));

return t;
}

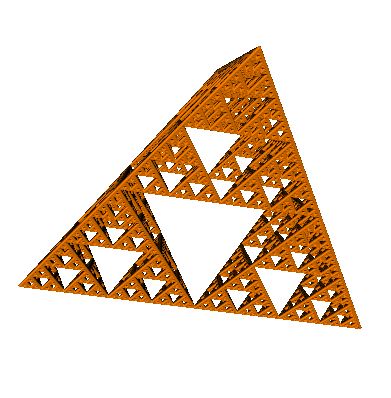

Recursive Tetrahedron Fractal

Let's bring it all together - combining objects to construct fractals.

A tetrahedron may be described as a polyhedron with vertices (1,1,1),(-1,-1,1),(1,-1,-1),(-1,1,-1). Now, for each point in space, lets us take the vertex closest to it, and scale the system by a factor of 2.0 using this vertex as center, and then finally return the distance to the point where we end, after having repeated this operation. Here is the code:

WebGL version of GLSL is limited e.g.

Even though we do not have an infinite number of objects, like the mod - example above, the number of objects grow exponentially as we crank up the number of iterations. In fact, the number of objects is equal to 4^Iterations. Just ten iterations will result in more than a million objects - something that is easily doable on a GPU in real-time!

SDF Folding Space

When constructing fractals by iteratively combining shapes, there is a smart trick that takes advantage of 'mirroring' (or folding). This clever trick utilizes the symmetries of the fractal. For instance, if you look at the tetrahedron fractal example, you'll notice it's symetrical across certain axis - so we can use that to optimize the implementation (use folds).

Instead of scaling about the nearest vertex, we mirror points in the symmetry plane of the tetrahedron, to make sure that we arrive at the same octant of the tetrahedron - and then always scale from the vertex it contains.

Here is the code - it produces the same result - but uses folds instead - so it's more compact and efficient.

The folding operations is an interesting aspect of fractals with sdf, and builds up on 'mod' and 'combining' aspects - however, the really interesting stuff with folding happens when we throw rotations into the process. Imagine kaleidoscopic fractals - which produces fractals like the Menger Sponge.

Mixing in rotations, translations and scaling into the fold.

Lighting and SDF

Lighting helps make the fractals more beautiful - as it highlights the detail. Of course, there are more than one ways to light a scene (not just directional lighting).

Phong shading

Phong shading is a technique used to simulate the interaction between the light sources and surfaces, considering diffuse, specular, and ambient reflections, resulting in smooth shading with highlights and shadows.

Ambient Occlusion

Besides the ambient, diffuse, and specular light from Phong-shading, one thing that really improves the quality and depth illusion of a 3D scenes is ambient occlusion.

One approach is to count the number of ray steps as a very rough measure of how occluded the geometry.

Another approach is to sample the Distance Estimator at points along the normal of the surface and use this information to put together a measure for the Ambient Occlusion. This is a more intuitive method, but comes with some other shortcomings – i.e. new parameters are needed to control the distance between the samplings and their relative weights with no obvious default settings.

Glow

Glow can be added simply by mixing in a color based on the number of ray steps taken (points close to the fractal will use more ray steps, even if they miss the fractal, so pixels close to the object will glow).

Fog

Fog is also great for adding to the depth perception. Simply blend in the background color based on the distance from the camera.

Hard shadows

Hard shadows are also straight forward – check if the ray from the surface point to the light source is occluded. Hard shadows have crisply defined, sharp edges.

Soft shadows

Soft shadows are the softened shadows (feathered around the edge).

Reflections

Reflections are pretty much the same – reflect the camera ray in the surface normal, and mix in the color of whatever the reflected ray hits.

Colors

Colors can be use to visualize important information (edges or detail around a fractal).

Orbit Traps

Orbit traps is a popular way to color fractals. This method keeps track of how close the orbit comes to a chosen geometric object. Typical traps include keeping track of the minimum distance to the coordinate system center, or to simple geometric shapes like planes, lines, or spheres. In Fragmentarium, many of the systems use a 4-component vector to keep track of the minimum distance to the three x=0, y=0, and z=0 planes and to the distance from origo. These are mapped to color through the X,Y,Z, and R parameters in the ‘Coloring’ tab.

Iteration Count

The iteration count is the number of iterations it takes before the orbit diverges (becomes larger than the escape radius). Since this is an integer number it is prone to banding, which is discussed later in this post. One way to avoid this is by using a smooth fractional iteration count:

Conditional Path Coloring

Some fractals use conditional logic inside the iteration loops (sometimes disguised as `abs` operator to avoid if statements). The Mandelbox is a good example: the sphere fold performs different actions depending on whether the length of the iterated point is smaller or larger than a set threshold. This makes it possible to keep track of a color variable, which is updated depending on the path taken.

Nutshell

Fusing signed distance functions (SDFs) with ray-tracing opens the door to a quick and powerful way to create complex interactive fractals. Combined with the processing power of the GPU; which can be executed in JavaScript using various API (like WebGL/GLSL or WebGPU/WGSL); there are no limits to what you can create!

Advert (Support Website)

Visitor:
